Operational, Security, Product, and Architecture Specifications

1. Introduction

1.1 Purpose of this document

The purpose of this document is to provide a comprehensive specification that combines a Software Requirements Specification (SRS) and an Architecture Description (AD) for the age verification solution for online services to protect minors. The document defines both the functional and non-functional requirements, as well as the system architecture, with the objective of harmonising the development of age verification solutions within the EU. This approach aims to deliver a cross-border solution that minimises development effort and duplication among Member States, while fostering synergies.

The structure of this document is based on the relevant IEEE standards, specifically, [IEEE 830-1998] for Software Requirements Specifications and [ISO/IEC/IEEE 42010:2022] for Architecture Descriptions, but has been adapted to meet the specific needs and context of this project.

This document aims to facilitate clear understanding of the intended system behaviour, constraints, and architectural decisions. Furthermore, it provides Member States and other interested parties with a foundation for implementing compliant systems.

Section 4 "Age Verification Solution high level requirements" of this document includes normative requirements for the Proof of Age attestation, Age Verification Apps, Attestation Providers, Relying Parties, and Trusted Lists.

1.2 Scope of this development

This document defines the structural and functional aspects of the age verification solution for online services. It details the key components, interfaces, and interactions within the age verification ecosystem, providing a technical foundation to ensure interoperability, security, privacy and compliance with applicable regulatory and industry requirements.

The scope includes:

The end-to-end process for issuing, presenting, and verifying Proof of Age attestations for access to online services, including age-restricted content, products, or services.
The operational, security, product, and architectural requirements necessary for a harmonised and scalable solution that can be adopted and extended by Member States or other actors.
The definition of system boundaries, including the roles of Attestation Providers, Relying Parties, and Users, as well as the interactions between these entities.
The technical requirements for device compatibility, focusing on enabling Users to present Proof of Age attestations across commonly used devices such as mobile phones, tablets, laptops, and desktop computers.
The specification of interoperability mechanisms to support integration with existing and future digital identity solutions, including the planned incorporation into EU Digital Identity Wallets.

This specification does not cover the internal implementation details of third-party Relying Parties, the development of alternative age verification methods beyond those explicitly described, or the detailed integration of operational systems required for an enrolment, as this is subject to country-specific requirements. It serves as a reference for the harmonised implementation of age verification solutions across the European Union.

This specification builds upon the Architecture and Reference Framework (ARF) for the European Digital Identity (EUDI) Wallets, adopting the same foundational technical standards and design principles to ensure interoperability, security, and privacy within the EU digital identity ecosystem. However, it defines only a subset of the requirements and functionalities compared to a full EUDI Wallet implementation, focusing specifically on the needs of age verification solutions. The objective is to provide a compatible architecture that facilitates seamless integration with EUDI Wallets as the ecosystem evolves.

1.3 Definitions, Acronyms and Abbreviations

For the purposes of the present document, the terms and definitions given in EU Digital Identity Architecture and Reference Framework and the following apply. A term defined in the present document takes precedence over the definition of the same term, if any, in EU Digital Identity Architecture and Reference Framework.

1.3.1 Definitions

For the purposes of the present document, the following terms and definitions apply:

Attestation Provider: Natural or legal person that provides the Proof of Age attestation to the User of an Age Verification App Instance.
Authentic Source: A repository or system, held under the responsibility of a public sector body or private entity, that contains and provides attributes about a natural or legal person or object and that is considered to be a primary source of that information or recognised as authentic in accordance with Union law or national law, including administrative practice.
Age Verification App: A unique configuration of an Age Verification Solution by an Age Verification App Provider to a User seeking to access age-restricted content or services. A User requests, receives, and manages their Proof of Age attestation with this app and presents the Proof of Age attestation using this app when required to Relying Parties.
Age Verification App Instance: The Age Verification App installed and configured on a User’s device.
Age Verification App Provider: A natural or legal person who provides Age Verification Solutions.
Age Verification Solution: A combination of software, hardware, services, settings, and configurations
Implementer: Αn individual who is responsible for translating software designs, specifications, or concepts into functional, operational systems. Presumably this is a contractor of the Age Verification App Provider, Proof of Age Attestation Provider or Relying Party.
Level of Assurance. Assurance levels as denfined in Commission Implementing Regulation (EU) 2015/1502
Proof of Age attestation: An attestation which includes information about the age of the User using the data model defined in this document.
Relying Party: Natural or legal person that relies on the Age Verification App to verify the User condition of being over certain age.
Third Party Data Sources: A trusted private data source is a non-governmental, commercially operated entity that maintains accurate and verifiable User information, which can be leveraged for age verification purposes (e.g. bank, mobile network operators, utility provider).
Trust Provider: Operator of an entity or mechanism responsible for maintaining a trusted list (whitelist) of all authorised Attestation Providers. This ensures that Relying Parties and Users can validate the legitimacy and authorisation of entities participating in the ecosystem.
User: A User who is in control of an Age Verification App Instance.

1.3.2 Acronyms and Abbreviations

For the purposes of the present document, the following abbreviations and acronyms apply:

Term	Definition
AP	Attestation Provider
ARF	Architecture and Reference Framework
AV app	Age Verification App
AVI	Age Verification App Instance
AVAP	Age Verification App Provider
CA	Certificate Authority
DG CNECT	Directorate General Network, Content and Technology
eIDAS	Electronic Identification, Authentication and Trust Services
EU	European Union
EUDI	European Digital Identity
EUDIW /EUDI Wallet	European Digital Identity Wallet
LoA	Level of Assurance
U	User
RP	Relying Party
T-Scy	Scytáles & T-Systems Age consortium
WB	Web Browser (or web app)
ZKP	Zero Knowledge Proof

1.4 Conventions

The terms "SHALL," "SHALL NOT," "MAY", "SHOULD," and "SHOULD NOT" in this document are to be interpreted as defined in RFC 2119 (Key words for use in RFCs to Indicate Requirement Levels). Their meanings are as follows:

SHALL: Indicates a mandatory requirement; compliance is required.
SHALL NOT: Indicates a mandatory prohibition; compliance is required.
SHOULD: Indicates a recommended requirement; there may exist valid reasons to ignore it in particular circumstances, but the full implications must be understood and carefully weighed before choosing a different course.
SHOULD NOT: Indicates a recommended prohibition; there may exist valid reasons in particular circumstances when the particular behavior is acceptable or even useful, but the full implications should be understood and the case carefully weighed before implementing any behavior described with this label.
MAY: Indicates an optional requirement; implementation is permitted but not required.

These keywords are used throughout this document to clarify the level of obligation associated with each requirement.

1.5 References

References are classified as either specific (identified by date of publication and/or version number) or non-specific. For specific references, only the cited version is applicable. For non-specific references, the most recent version of the referenced document (including any amendments) shall apply.

1.5.1 Normative References

The following referenced documents are essential for the application of this document.

Item Reference	Standard name/details
[ISO/IEC 18013-5]	ISO/IEC 18013-5:2021: Personal identification — ISO-compliant driving licence. Part 5: Mobile driving licence (mDL) application. Edition 1, 2021.
[ISO/IEC 18013-7]	ISO/IEC TS 18013-7:2025: Personal identification — ISO-compliant driving licence. Part 7: Mobile driving licence (mDL) add-on functions. Edition 2, 2025.
[OpenID4VP]	OpenID for Verifiable Presentations
[W3C Digital Credentials API]	Caceres, M., Cappalli, T., Goto, S. et al, "Digital Credentials API", Draft Community Group Report

1.5.2 Informative References

The documents listed below are not required for the implementation of this document; however, they provide additional guidance and context on specific subject areas.

Item Reference	Standard name/details
[ARF]	EU Digital Identity Architecture and Reference Framework
[OpenID4VCI]	OpenID for Verifiable Credential Issuance
[HAIP]	OpenID4VC High Assurance Interoperability Profile with SD-JWT VC
[OIDC]	Final: OpenID Connect Core 1.0 incorporating errata set 2
[ISO/IEC 23220-2]	ISO/IEC TS 23220-2:2024: Cards and security devices for personal identification — Building blocks for identity management via mobile devices. Part 2: Data objects and encoding rules for generic eID systems. Edition 1, 2024.
[ISO/IEC CD TS 23220-3]	ISO/IEC CD TS 23220-3: Cards and security devices for personal identification — Building blocks for identity management via mobile devices. Part 3: Protocols and services for issuing phase
[ISO/IEC CD TS 23220-4]	OISO/IEC CD TS 23220-4: Cards and security devices for personal identification — Building blocks for identity management via mobile devices. Part 4: Protocols and services for operational phase.
[IETF RFC 2119]	Key words for use in RFCs to Indicate Requirement Levels
[IEEE 830-1998]	Recommended Practice for Software Requirements Specifications
[ISO/IEC/IEEE 42010:2022]	Software, systems and enterprise — Architecture description

2 Overall Description of the Age Verification Solution

The primary objective is to develop an EU-wide solution to age verification that reinforces the Digital Services Act (DSA) objective to ensure safe, secure, and trusted digital space (notably Article 28, which focuses on protecting minors) and the Louvain-la-Neuve Declaration, which promotes a safer and more trustworthy online environment. The proposed solution is intended to bridge the gap until the EU Digital Identity (EUDI) Wallets become available by the end of 2026, enabling the incorporation of the age verification functionality in them.

As stated in the Louvain-la-Neuve Declaration, "the presence of online harmful content and systemic risks continues to be a major concern as the use of social media, in particular by children, increasingly plays a formative role in their daily lives". Creating a safer, more secure, and trusted digital environment therefore has to be at the heart of Europ's digital strategy, with a firm commitment to support, empower and respect children online and protect them from harmful content and systemic risks. The Louvain-la-Neuve Declaration also calls on the European Commission to bring together the tools available under the Digital Services Act (DSA) and the European Digital Identity Wallet, to provide comprehensive safeguards for the users of digital services in the Union, in particular the most vulnerable groups, for example children.

As stated in the study "Mapping age assurance typologies and requirements", age verification solutions provide a high degree of certainty in determining the age of a user. Through this design document we are defining a Europe-wide effective and convenient method to age-gate access to specific online services.

Age verification plays a crucial role across various scenarios, including:

Access to online services: Verifying age for online services offering age-restricted content or services, such as adult media, gambling, or other content deemed unsafe for minors.
Purchases of age-restricted products: Ensuring legal compliance when purchasing products like alcohol or tobacco, both online and in physical stores.
Age-related benefits: Validating eligibility for discounts or services offered to specific age groups, such as young or elderly individuals.

Given the regulatory priorities and societal needs, this document focuses on age verification for accessing online services with restricted content or services. However the proposed solution defined in this document is not exclusive to this use case but can be used broader in the scenarios mentioned above.

The age verification solution will serve as a foundational component of the European Union’s efforts to create a safer digital environment. This document will contribute to the development of a future Age Verification Rulebook, which will be included in the Electronic Attestation Catalogue under the governance of the European Digital Identity Regulation.

By establishing a secure, privacy-preserving, and interoperable framework for age verification, this initiative will empower users, online services, and regulators to uphold digital safety and inclusivity while ensuring compliance with Union law.

2.1 Perspective of the Age Verification Solution

Once Proof of Age attestations are issued, they can be presented and verified by online services in a simple, secure, and privacy-preserving manner. This capability is supported by the following elements:

Open Technical Specifications: A comprehensive suite of open technical specifications has been developed to support the implementation of the end-to-end solution. These specifications cover the entire lifecycle, from the issuance of age attestations to their verification by online services. Their development involved close collaboration with all relevant stakeholders-including Member States, industry representatives, and technical experts-to ensure alignment with regulatory requirements, technological advancements, and user needs. This inclusive approach promotes interoperability and facilitates broad adoption of the solution.
Integration with the European Digital Identity Regulation: The solution leverages the existing eIDAS infrastructure, including eIDAS nodes and the trust framework for trusted services, to ensure a high level of security and reliability. By aligning with the technical architecture of the EU Digital Identity Wallet ARF, the solution delivers secure, reusable, and interoperable proofs of age.
This approach ensures compliance with EU standards, enabling trusted interoperability and seamless cross-border functionality.
Reference Implementation: A reference implementation, including a white-label Age Verification App, is provided to facilitate the widespread deployment and adoption of age verification solutions.

By ensuring compliance with the standards outlined in the EU Digital Identity Architecture and Reference Framework (ARF), this solution establishes a foundation for long-term sustainability and interoperability. The Age Verification Profile defined in Annex A is designed to be forward-compatible with future EUDI Wallets.

2.2 Functions of the Age Verification Solution

The Age Verification Solution provides a set of key functional capabilities that support the issuance, presentation, and verification of Proof of Age attestations across the European Union. The following subsections describe the key capabilities that support this functionality.

2.2.1 Flexible Enrolment Methods

A primary function of the solution is the issuance of Proof of Age attestations that can be used across the European Union. These attestations enable individuals to demonstrate that they meet a specific age threshold, currently focused on "over 18", to access age-restricted online services and content. The solution is designed to be extensible, allowing support for other age groups (e.g., "over 14" or "over 65") provided that appropriate enrolment methods are available.

Users have the flexibility to choose from multiple enrolment methods to obtain their Proof of Age attestation. Currently supported methods include:

Scanning or reading an electronic identity card (eID) or a passport.
Using existing identification systems provided by 3rd party providers or apps.
Other secure identity proofing processes as defined by Member States.

These enrolment methods ensure that the Proof of Age attestation is based on reliable and verifiable identity information. Where necessary, enrolment can also be conducted on-site to accommodate users who may not have access to electronic identification means.

Member States and solution providers retain the autonomy to determine which enrolment options they offer within the age verification solution. This flexibility acknowledges the diversity of national identification systems, regulatory environments, and user needs across the European Union.

2.2.2 Presentation of a Proof of Age attestation

The solution enables users to present their Proof of Age attestation to Relying Parties, primarily for online use cases. The system is optimised for secure and privacy-preserving online presentation, allowing users to prove their eligibility without disclosing unnecessary personal information. The solution can in principle also be adapted to support offline or proximity-based presentations.

2.2.3 Revocation and Re-Issuance

In its current form, the solution does not support revocation or re-issuance. Adding support for these features would introduce additional complexity, which could hinder the rapid adoption of the solution.

2.2.4 Verifiable across Member States

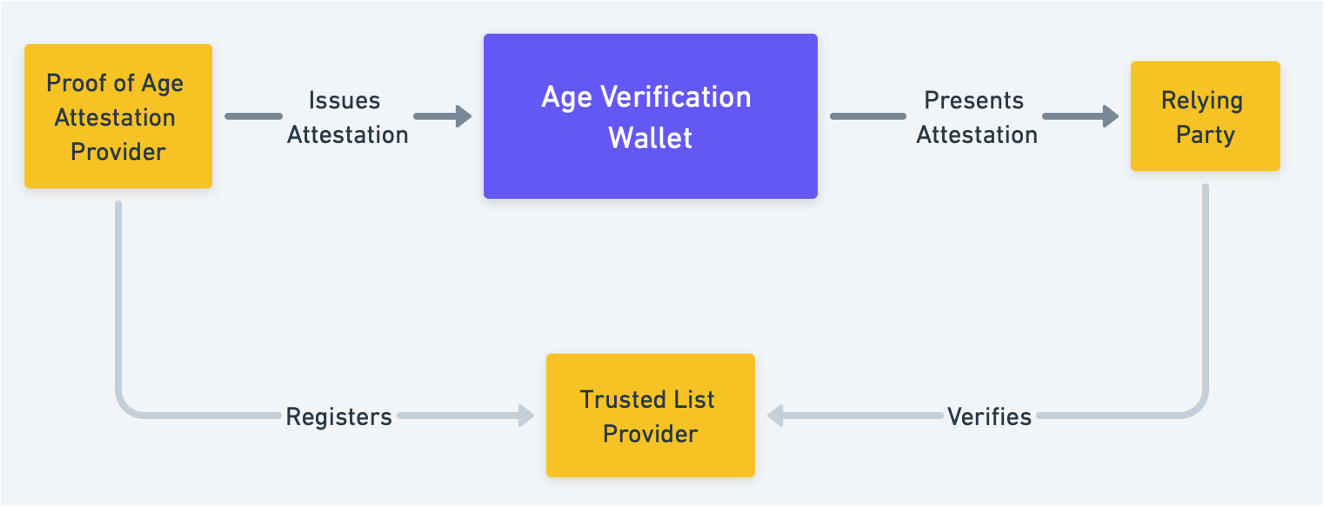

A Trusted List is maintained as part of the solution, allowing Relying Parties and Users to validate which entities are legally authorized to issue Proof of Age attestations. This enhances trust and interoperability across Member States by ensuring that only recognised authorities participate in the issuance process.

2.2.5 Extensibility

While the current implementation focuses on the "over 18" age threshold, the technical architecture supports extension to other age groups as required by regulatory or business needs. The same applies also to additional enrolment options. The only prerequisite is the availability of a suitable enrolment process for the target age group, which can be also adapted or conducted on-site if necessary.

2.3 User Journey

To enable online age verification, the User is required to install an AV app on their mobile device. This AV app allows the User to securely and reliably present proof of age without disclosing any unnecessary personal information. For instance, the User can demonstrate that they meet a minimum age requirement-such as being at least 18 years old-without revealing their exact age, name, or other sensitive details. This approach ensures both privacy and strict adherence to applicable data protection standards.

The following illustration and accompanying description outline a scenario-based sequence of the steps a User undertakes to achieve this objective using the proposed age verification solution. This User journey spans multiple channels and points in time, highlighting the seamless interaction between the User, the AV app, and the online service.

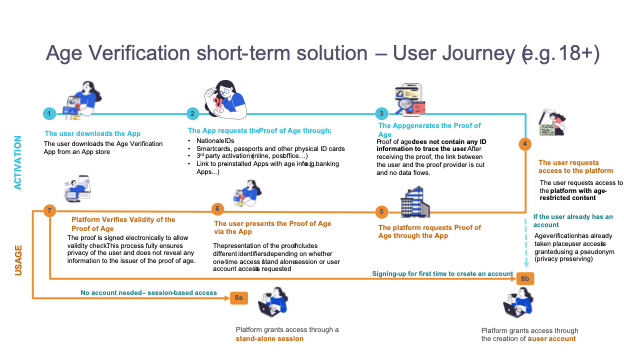

Figure 1: Journey of a Proof of Age attestation user

The age verification process consists of two main phases: Activation and Usage. The steps are illustrated in Figure 1 and detailed below:

Activation

App installation and registration (step 1)

The User downloads and installs the AV app on their mobile device.
If required by the AV app, notably if it supports multiple user profiles, the User creates a local profile in the AV app to facilitate subsequent verification processes.

Requesting a Proof of Age attestation (step 2)

The User requests a Proof of Age attestation from a designated AP, which will issue it after verifying the User's identity at a level of assurance equivalent to "substantial" or "high" pursuant to Commission Implementing Regulation (EU) 2015/1502 through the following methods:
Notified or national eID schemes.
Leveraging existing databases: Identity verification is conducted through recognised and well-established processes already in use for personal identification under national or Union law, such as national identity providers covering the level of assurance.
Know Your Customer (KYC) procedures employed by banks or the identity verification methods used for issuing SIM cards by Mobile Network Operators.
Document-Based Verification: Confirming the User’s age using official identification documents such as electronic ID cards, passports, or other government-issued credentials. The link between the document and the User should be verified.

Issuance of Proof of Age attestations (step 3)

Once the User's age has been verified, the AP may either issue the Proof of Age attestation directly to the User's AVI or generate a pre-authorized code and provide it to the User as part of a credential offer. At a later stage, the User can present this credential offer through their AVI to obtain the Proof of Age attestation.
This attestation is securely stored within the AVI and can be used to prove the User's age to online services.

Usage

User requests access to age-restricted services (step 4)

After activation, the User can use the AVI to present their Proof of Age attestation to access age-restricted content or services.
The User initiates access by requesting a service or content on the RP.

Service requests Proof of Age attestation (step 5)

The RP replies by requesting a Proof of Age, typically through one of the following mechanisms:
Same-Device App Integration: The User's browser or a native app opens the AVI directly (if on the same device).
Cross-Device QR Code: The RP displays a QR code that the User scans with their mobile device to open the AVI.

Confirmation and presentation (step 5)

The AVI receives the Proof of Age request and presents it to the User. The User reviews the request details, verifies the information, and confirms the transaction to proceed.
The AVI securely transmits the Proof of Age attestation to the RP.

Verification and access (step 6)

The RP verifies the Proof of Age attestation by:
Checking the attestation's validity and digital signature.
Ensuring the attestation's details meet the required criteria (e.g., age threshold).
If the verification is successful, the RP grants the User access to the requested service or product.

Verification options for subsequent interactions (steps 8a/8b)

On-Demand Verification (8a): RPs may request the Proof of Age attestation each time the User attempts to access restricted content or services, without storing it in any session or account, ensuring privacy and minimising data retention.
Stored Verification(8b): RPs may optionally store information derived from the Proof of Age attestation in the User's account, allowing the User to bypass repeated verification for future visits or purchases, streamlining the User experience. In this case, authentication methods such as WebAuthN should be utilised to ensure secure access while enabling the User to choose a pseudonym, preserving privacy. Risks in case of the device sharing should be considered.

2.4 Design principles

To enable rapid and reliable deployment of the age verification solution, the solution adheres to the following approach:

Reliance on existing standards: Where possible, it prioritizes the use of available standards and specifications to expedite development and integration. The ARF serves as the primary pool of standards.
Collaboration with established APs: The solution engages institutions capable of mass-issuing Proof of Age attestations, such as banks, mobile network operators, and governmental population registers.
Involvement of key stakeholders: The solution partners with actors skilled in app development and eGovernment solutions, including mobile operating system providers, wallet solution providers, and operators of citizen-facing applications.

Furthermore, to ensure a robust and reliable solution, the framework is driven by the following design principles:

Data protection:
Data minimisation: Only the necessary user attributes or attribute statements for a specific transaction are released, in accordance with the principle of data minimisation. This is achieved by implementing technologies that inherently restrict data exposure and safeguard user privacy. Domain-specific identifiers, or pseudonyms, are used to enable users to avoid relying on the same unique identifier when interacting with online services.
Unlinkability: The goal of the solution is to prevent user profiling and tracking by avoiding linkable transactions. Initially, the solution will rely on batch issuance to protect users from colluding RPs. Zero-Knowledge Proof (ZKP) mechanisms will be considered to offer protection. More details are provided in Section 7.
Storage limitation: Data is retained by all involved parties only for as long as necessary for the purposes of age verification.
Transparency: Users receive clear information about how their personal data is used.
Data security: User data and credentials are securely stored to ensure confidentiality, authenticity, integrity, and availability. This protection safeguards data against unauthorised access, destruction, misuse, alteration, disclosure or loss.
Cloning protection: Cloning protection prevents the unauthorised duplication of credentials and user data. This measure ensures that illicit reproduction of credentials does not grant unauthorised parties privileges they would not otherwise possess.
Eavesdropping protection: The protocols implemented within the age verification solution leverage secure communications channels preventing unauthorised interception and exposure of personal data.
Interoperability: The solution ensures seamless integration across diverse device operating systems, wallet applications, and online services.
User binding: User attributes and credentials are securely bound to the legitimate user to whom they are issued. This ensures the fundamental functionality of any government-issued document: accurately associating attributes with the individual to whom they apply.
User centricity: The system is user-centric, allowing users to maintain control over their attributes and provide informed consent for their use, whether the attributes are managed locally or remotely by an identity or attribute provider.
User experience: The solution provides a simple and intuitive process for users to verify their age and share attestations when required.
Compliance: The solution aligns with data protection regulations, including GDPR, particularly the principles of data protection by design and by default, and adheres to the European Digital Identity Regulation.
Equity: The solution is designed to be accessible and inclusive, ensuring that users with varying levels of technological access or proficiency can participate without barriers. Remedies, such as alternative attestation issuance procedures or human intervention, are available for cases where individuals cannot use the mainstream procedure, for example due to a lack of necessary identity documents or electronic identification means.

2.5 Assumptions and Dependencies

This specification operates under the following foundational assumptions:

2.5.1 Legal Compliance in Member States

It is assumed that EU Member States have established appropriate legal frameworks to authorise the collection and processing of data required for issuing Proof of Age attestations. This includes compliance with GDPR, the Digital Services Act (DSA), and national laws governing identity verification and age-restricted services. The enrolment methods (e.g., eID, passport scans) rely on these legal bases to ensure lawful data handling.

2.5.2 Deployment and national adaptations

Member States or third-party entities are responsible for deploying the age verification solution in their jurisdictions. The solution is provided as a white-label, open-source implementation, enabling customisation to meet national legal, technical, and security requirements. No operational responsibility is retained by the project consortium.

Member States are responsible for modifying the solution to align with national legal requirements (e.g., age thresholds, data retention policies) and security standards (e.g., certification of Attestation Provider, encryption protocols). The specification provides modular components to facilitate these adaptations without compromising interoperability.

2.5.3 Open-Source Implementation

The project exclusively provides an open-source reference implementation via public repositories (e.g., published on GitHub). Member States and third parties are responsible for hosting, maintaining, and adapting the solution to their infrastructure.

2.5.4 Alignment with EU Digital Identity Architecture

The solution assumes ongoing development of the EU Digital Identity Wallet's Architecture and Reference Framework (ARF). By adhering to the ARF's evolving specifications, the age verification solution ensures interoperability with future EU Digital Identity Wallets and leverages synergies in trust frameworks, cryptographic standards, and governance models.

2.6 Key differences between the Age Verification application and the Age Verification functionality in the EUDI Wallet

The Age Verification solution is intended to bridge the gap until the EUDI Wallets become available by the end of 2026, enabling the incorporation of the age verification functionality in them. This section describes the key differences between the Age Verification application and the age verification functionality in the EUDI Wallet.

The trust framework of EUDI Wallet requires that the Wallet Solution is certified, and the Wallet Solution provider is registered. Also, the Relying Parties are registered, and a Wallet Unit needs to be able to authenticate the Relying Party. In the Age Verification application there is no certification or registration need for the Age Verification App providers or the Relying Parties.

Onboarding of users to the European Digital Identity Wallet will be facilitated by relying on identity proofing process comparable to LoA high.

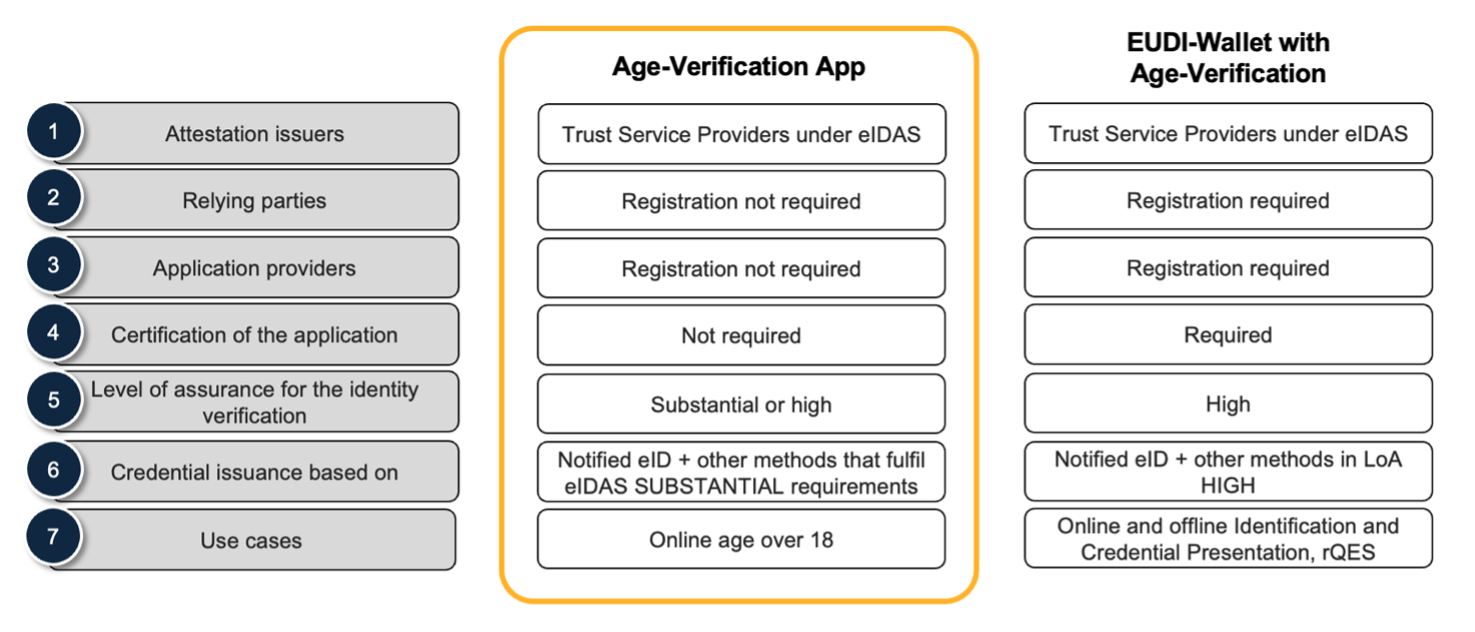

Figure 2: Differences in trust frameworks depending on the way of making the age verification functionality available.

The AV app is a stand-alone application that provides only the minimum functions. In case of authentication to the national eIDAS node, only the age verification attestation is stored. In this application no other ID data is stored than the ones described in section 4.1.

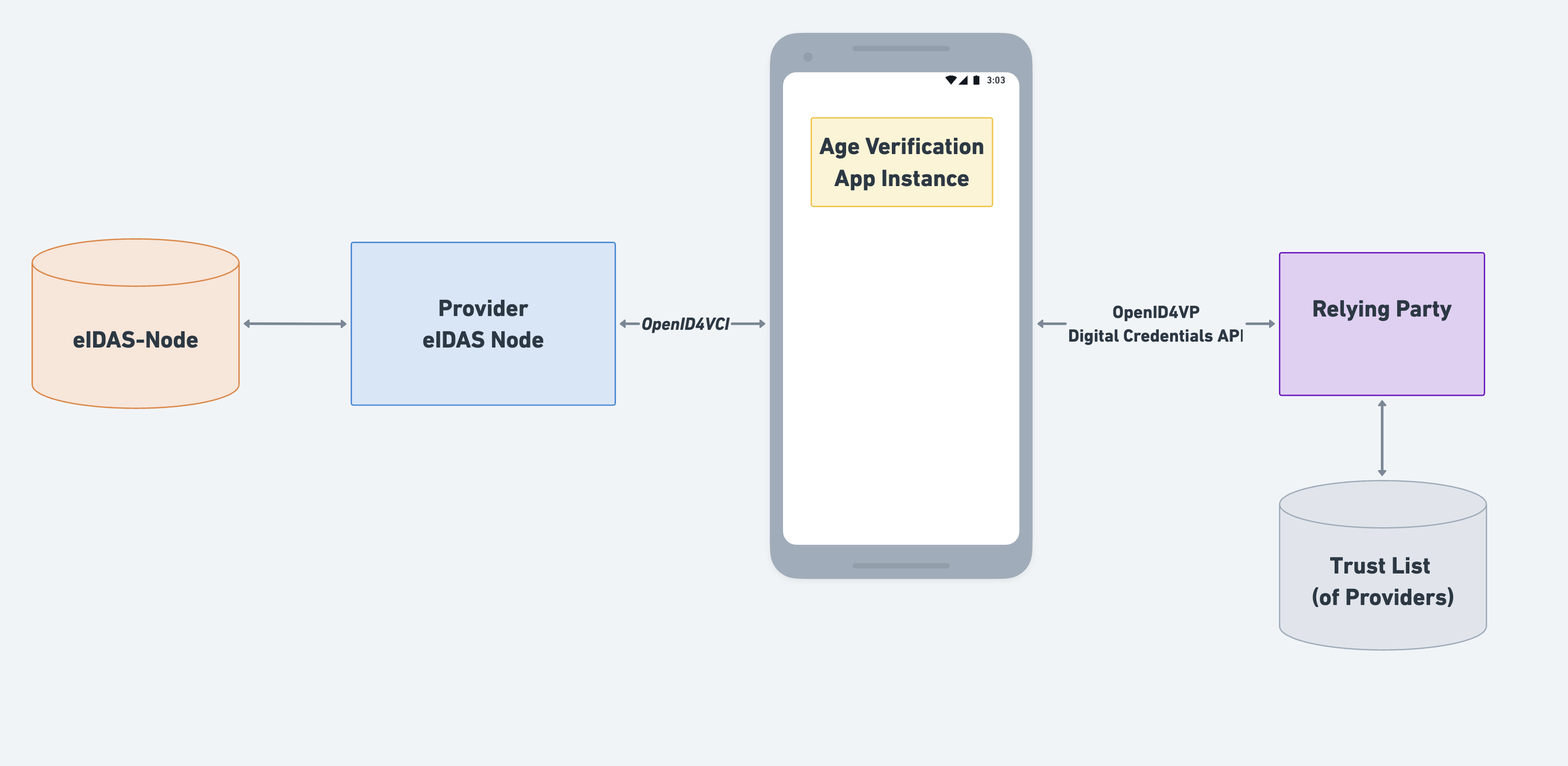

Figure 3: Authenticating to a national eIDAS node to receive the age verification attestation. Additional issuing options are available and analytically presented in the next sections.

3. Architecture

The age verification solution defined in this document is guided by several key objectives. First and foremost, the solution is intended to support age verification for access to online services, which is identified as a regulatory priority. By focusing on this specific use case, the deployment of the age verification solution can be accelerated, ensuring that it meets urgent regulatory needs while maintaining the potential for future expansion.

A further goal is to enable rapid and wide-scale deployment. Design decisions are made to support swift development, integration, and rollout of the solution, making it broadly accessible across the European Union. To ensure inclusion, the solution is designed for compatibility with all common devices used by Europeans to access online services, including mobile phones, tablets, laptops, and desktop computers. The primary delivery channel will be a white-label mobile application.

The solution relies on a device-based proof of age model, leveraging widely available mobile devices such as smartphones and tablets to store age attestations. This approach supports the goal of rapid deployment and broad accessibility. Alternative mechanisms for storing and presenting proof of age may be considered for future versions of the solution.

It is also recognised that devices may be shared among multiple users, for example, when a child has access to a parent’s mobile phone. Such scenarios introduce risks related to privacy, security, misuse, data loss, and limited parental controls. While the solution may not be able to address all these risks comprehensively, mitigation strategies are considered in the design. These include implementing user authentication at the application level, such as requiring an additional PIN, and encouraging Age Verification App Providers to incorporate further authentication factors as needed.

Certain elements are currently considered out of scope. Specifically, the use of the solution for purposes other than access to online services-such as for purchasing age-restricted products, obtaining age-related discounts, or other applications-is not a current priority. However, Age Verification App Providers may include such support, and design choices made in this document consider this possibility.

Additionally, the storage of Proof of Age attestations by remote services is excluded from the initial scope, as this would add complexity and potentially hinder rapid deployment. The possibility of utilising remote services for attestation storage may be revisited in future iterations, but, for now, technical standards that necessitate such reliance should be avoided.

In summary, the defined technical architecture design aims to balance regulatory compliance and practical deployment considerations, while remaining adaptable for future enhancements and broader use cases.

3.1 Interactions

The User initiates an age verification process by enrolling with an Attestation Provider (AP), which collects the necessary evidence from authentic sources or trusted 3rd party private data sources.
The AP generates a Proof of Age attestation and issues it to the Age Verification App Instance (AVI) of the User.
The AVI presents the attestation to a Relying Party (RP) when attempting to access age-restricted services.
The RP checks the validity of the attestation, referencing the trusted list to confirm the AP's authorisation.

The architecture of the age verification solution considers two flows: Same Device (figure 3) and Cross Device flow (figure 4).

The Same Device flow means that the User presents their Proof of Age attestation to a Relying Party interacting with the User (through the web browser or an app) on the same device where the Age Verification App Instance is located.

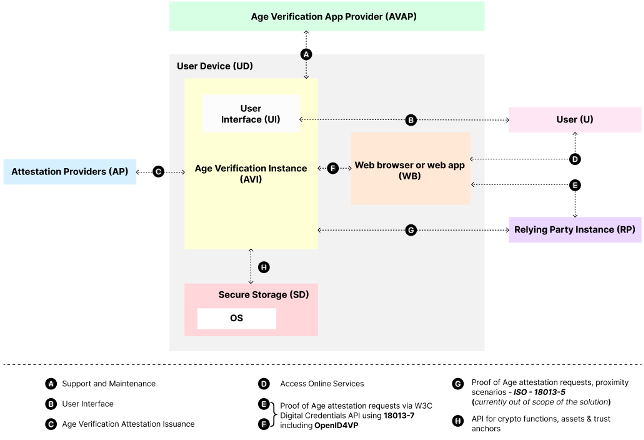

Figure 4: Age verification solution components, interfaces and protocols - Same Device

The Cross Device flow means that the User presents their Proof of Age attestation to a Relying Party interacting with the User on a different device that the device the Age Verification App resides on. In this case the devices should be in proximity to each other to provide protection against certain attacks.

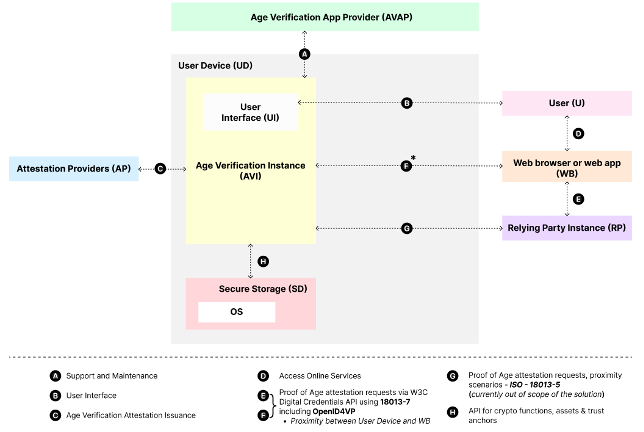

Figure 5: Age verification solution components, interfaces and protocols - Cross Device

3.2 Interfaces

The following interfaces are implemented by the Age Verification Solution:

3.2.1 Authentic Source and Attestation Provider interface

Communication between an Authentic Source (e.g., government register or trusted private entity) and an Attestation Provider occurs via a proprietary interface, enabling customization to meet organizational or national needs. Integration supports modern RESTful HTTPS APIs as well as adapters for legacy systems. Each Attestation Provider typically implements a distinct business process for every data source, adding complexity to integration.

3.2.2 Attestation Provider and Age Verification App Instance interface

This interface is used by the AVI to communicate with the AP to receive a Proof of Age attestation. This interface may be implemented using the protocols specified in Annex A, ensuring standardised, interoperable credential exchange across Attestation Providers and Age Verification App Instances, An Age Verification App Instance can interface with any APs supporting the protocols specified in Annex A, enabling Users to obtain Proof of Age attestations from diverse providers (e.g., national eID schemes, banks, or mobile operators). This implementation aligns with the EU Digital Identity Wallet's Architecture and Reference Framework (ARF), ensuring cross-border interoperability.

3.2.3 Age Verification App Instance and Relying Party interface

This interface empowers RPs to securely request and receive a Proof of Age attestation from an AVI. This interface is implemented using the protocols specified in Annex A, ensuring standardised and interoperable presentation of verifiable credentials.

3.2.4 Attestation Provider and Trust Provider interface

To distinguish an authorised AP from an unauthorised one, all APs MUST be registered with the EU and included in a centrally maintained trusted list.

The registration interface follows a proprietary design.

3.2.5 Relying Party and Trust Provider interface

An RP can use an HTTP GET Method to retrieve the trusted list.

3.3 Supported Enrolment Configurations

To achieve Level of Assurance "Substantial", the enrolment process must provide a reasonable degree of confidence in the claimed identity, balancing security with usability. The identity proofing must rely on notified eID means or on evidence based on official documents (such as a passport, national ID card, or equivalent), but it does not necessarily require in-person presence. Remote identification procedures may be used, provided that they ensure the reliability of the process and protect against impersonation and manipulation.

At this level, identity verification may include automated or manual checks of the identification document, cross-checks with authoritative sources (e.g., population registries), and verification that the person presenting the identity is its rightful holder.

The enrolment process must still ensure that identity data is collected and verified securely, and that it is resistant to common attacks (e.g., document forgery, replay attacks, and social engineering). Auditability, traceability, and appropriate risk management measures are also expected.

In the following two sub-sections, attestation enrolments approaches are introduced grouped in:

Methods with existing Identification, where only Authentication is needed by the citizen.
Methods without existing Identification, where the citizen needs to provide proof of identification and binding to it.

At a high level, the issuing options are illustrated in the figure below. At least one of the options must be implemented.

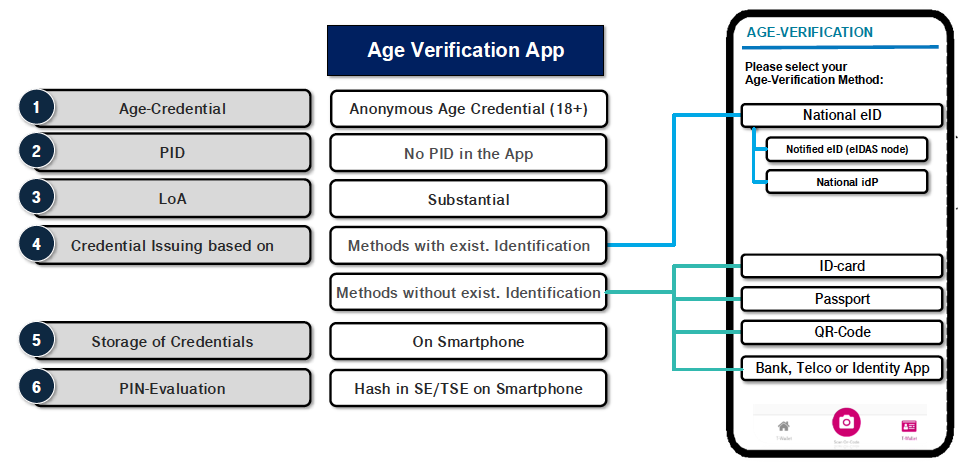

Figure 6: Enrolment options with and without existing identification.

The above architecture diagram is a functional diagram. For examples of physical mappings, see next clause.

3.3.1 Enrolment Methods with existing Identification

To achieve Level of Assurance "Substantial", enrolment processes can effectively leverage existing identification mechanisms that have already been verified to meet substantial (or higher) assurance levels. This includes the use of notified eID schemes under eIDAS, accessed through eIDAS nodes, or integration with national Identity Providers (IdPs) that offer authentication at a substantial level.

When a user authenticates via one of these methods, the identity proofing has already been conducted by a recognised authority in accordance with applicable standards, allowing the Attestation Provider to reuse this assurance level for enrolment. This approach simplifies the onboarding process while maintaining compliance with eIDAS LoA Substantial requirements.

Key Components

Notified eID Schemes

Notified eID schemes are electronic identification systems that have been officially notified by a Member State under the eIDAS Regulation and published by the European Commission. These schemes have undergone an assessment process confirming that they meet specific requirements for security, reliability, and assurance levels.

eIDAS Nodes

Cross-border authentication is facilitated via eIDAS nodes, which act as gateways between notified national eID schemes and Relying Parties (e.g., service providers). These nodes ensure secure, standardised communication and data exchange.

National IdPs

Member States' national Identity Providers (IdPs) that offer authentication services with legal value within their jurisdiction are a valid and reliable source of identity for enrolment processes. These IdPs typically operate under national legal frameworks and may be aligned with or integrated into notified eID schemes under eIDAS.

Authentication Workflow

The user initiates enrolment by selecting their national eID scheme.
The AP redirects the authentication request to the relevant eIDAS node.
The national eID scheme authenticates the user and returns the date of birth to the AP.

Technical Standards

SAML 2.0: Used for authentication requests and responses between eIDAS nodes and APs.
eIDAS Cryptographic Requirements: Compliance with TS 119 461 for identity proofing and cryptographic protocols.

Relevant technical specifications:

Technical specifications on the eIDAS eID Profile.
The eIDAS node technical documentation is publicly available as is the open-source code for the application. A web service designed to include the age_over_nn attribute has been developed and is available on the EUDI Wallet GitHub space (see issuer and web issuer).
Specifications of national electronic identification schemes published by their providers.

3.3.2 Enrolment Methods without existing Identification

In the approaches below, the AVI shall connect to the AP, providing identification information included in a physical identity card of passport.

Identity Cards and Passports (ICAO 9303)

The Age Verification App shall interface with physical identity documents compliant with ICAO Doc 9303 specifications for Machine Readable Travel Documents (MRTDs), including:

National ID cards (TD1/TD2 size per ICAO Doc 9303 Parts 5/6)
Machine-readable passports (TD3 size per ICAO Doc 9303 Part 4)
Other ICAO-aligned credentials with integrated circuit chips (contactless ICs)

Technical Requirements:

Document Reading

Support optical character recognition (OCR) of machine-readable zones (MRZ) with error correction per ICAO 9303-3
Implement contactless NFC communication for eMRTDs using PACE v2 protocol with Card Access Number (CAN) authentication
Validate document authenticity through:
- MRZ checksum verification
- Cryptographic validation of chip data signatures
- Cross-referencing with issuing authority validation services
  2. Biometric Verification Submodule
Perform ISO/IEC 30107-compliant liveness detection to prevent spoofing (masks, photos, deepfakes)
Conduct facial recognition matching between:
- Live capture (selfie/video)
- Document portrait (optical/NFC chip)
- Threshold: >=98% similarity score with bias mitigation
  3. Age Attestation Mechanism
Extract birthdate from MRZ (positions 7-14 in TD3 docs)
Generate tamper-evident attestation payload containing the age_over_18 claim.
Enforce cryptographic binding between attestation and biometric session data

Implementation Considerations:

Integrate with national identity schemes
The white label app will provide extension interfaces for biometrics and passport reader capabilities. It will also build an extension module for identity and passport reading based on an open-source module which implements the interfaces.

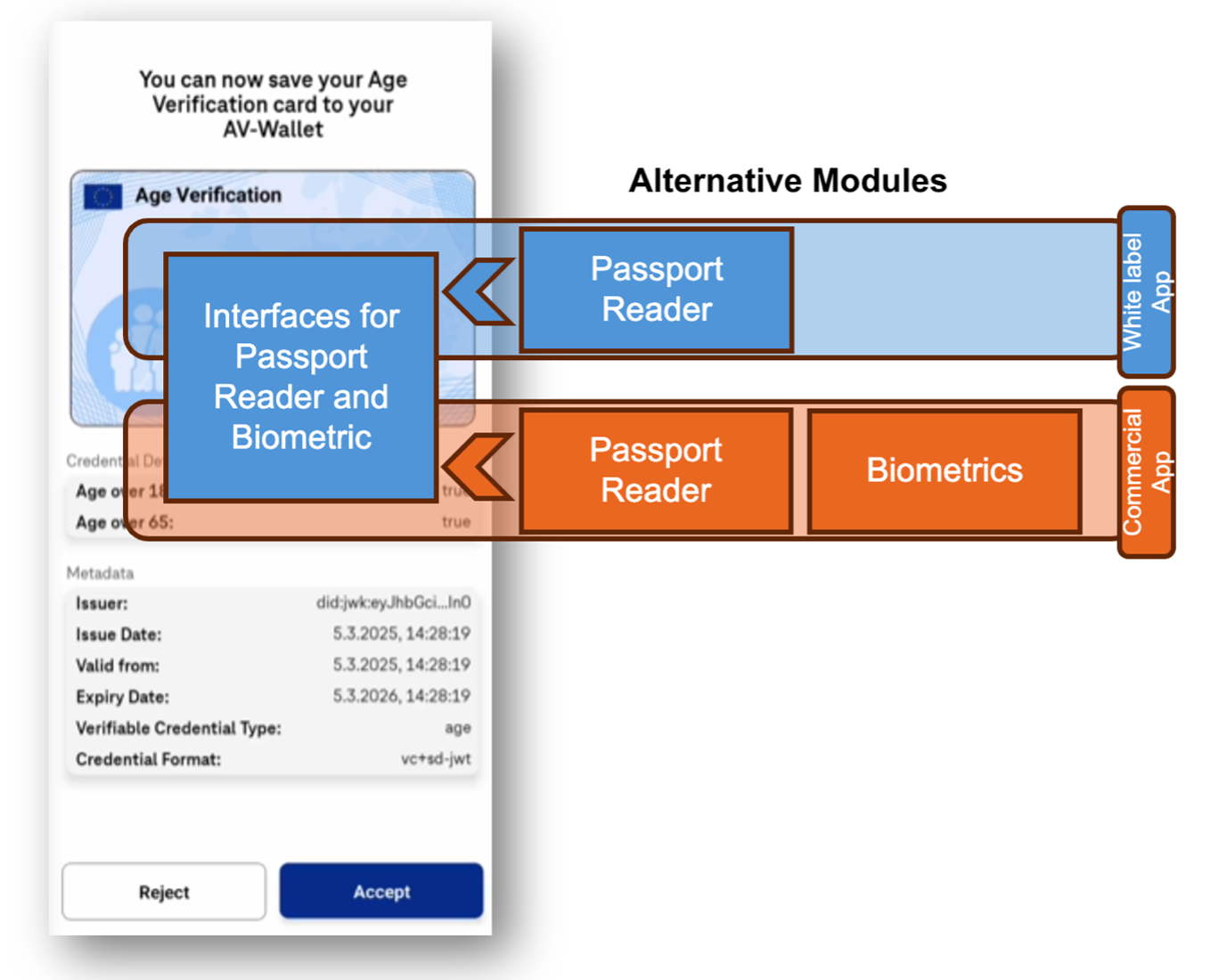

Figure 7: enrolment options with and without existing identification.

Relevant technical specifications:

ICAO Doc 9303 series (Machine Readable Travel Documents) and standards referenced therein, such as (see next line)
ISO/IEC 14443 Identification cards -- Contactless integrated circuit cards -- Proximity cards (ISO/IEC 14443-1, ISO/IEC 14443-2, ISO/IEC 14443-3, ISO/IEC 14443-4)
Technical Guideline TR-03110-1 Advanced Security Mechanisms for Machine Readable Travel Documents

3rd Party activation (out of band)

The Age Verification Solution supports an issuance workflow that separates the identity verification process from the subsequent generation and delivery of the Proof of Age attestation. This is achieved by utilising the pre-authorized code flow in OpenID4VCI.

With this architecture, identity verification is conducted independently and may take place in various trusted physical or virtual environments, such as a bank, notary office, citizen service centre or equivalent front office location. Upon successful completion of the identity verification step, the user is issued a credential, e.g., in the form of a QR code, along with a secondary authentication factor. This second factor is derived from information provided during the front office interaction and may include a PIN code, SMS or email-based one-time password (OTP) or a similar mechanism.

After completing this procedure, the user is able to use the provided credential offer and second-factor credentials to retrieve their age verification proof within the application.

Relevant technical specifications:

OpenID for Verifiable Credential Issuance ( Section 3.5 Pre-Authorized Code Flow)

3.4 Procedures

3.4.1 Issuing of Proof of Age batches

Since Proof of Age Attestations are designed for single use, the system must support the issuance of attestations in batches. It is recommended that each batch consist of thirty (30) attestations.

3.4.2 Re-Issuance of Proof of Age Attestations

The re-issuance process requires re-identification of the User at least every 3 months.

3.4.3 Attestation revocation and validity period

Attestation revocation is not required for age verification purposes. Implementing revocation mechanisms would significantly increase the complexity for both Proof of Age Attestation providers and Relying Parties.

It is recommended that the Proof of Age attestation be designed as a single-use credential and remain valid for a maximum period of three (3) months from the date of issuance. If a revocation mechanism is required, a status list may be utilized as an effective solution for managing the revocation status of attestations.

3.4.4 Validation of Trust

The trust framework for the Proof of Age attestation is based on trusted lists developed and operated pursuant to Article 22 of the eIDAS Regulation. The trusted lists are available on the eIDAS Dashboard. Proof of Age Attestation Providers should be published in a trusted list that is made available to the eIDAS Dashboard. The Trust Anchor (Service Digital Identifier) should be used by Relying Parties to validate the attestation.

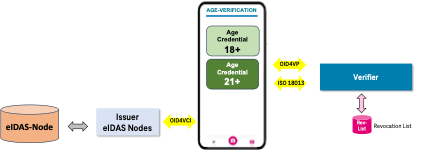

Figure 8: Validation of Trust

The registration of Relying Parties that request age verification, or the registration of Age Verification App Providers is not required.

Proof of Age Attestation Providers may however set specific conditions as to which apps they can issue such attestations to, and Age Verification App Providers may set similar conditions regarding Relying Parties.

Trusted List solution for the Proof of Age Attestation Providers (AP)

A Proof of Age Attestation Provider (AP) SHALL use its own dedicated trust anchor CA. Particularly:

The AP (or a CA acting on its behalf) manages the PKI infrastructure - including software, hardware, and HSM -, establishes a trust anchor CA, generates a key pair, and issues a certificate for signing or sealing the Proof of Age attestation.
The Trusted List Provider/Registrar adds the AP's information and corresponding trust anchor to the Trusted List.
For each AP, the Trusted List shall include information about the AP, together with its associated trust anchor.

Figure 9: AP-own trust anchor CA

4. Age Verification Solution high level requirements

(This section is normative)

This section includes normative requirements for Age Verification solutions. It specifies the Proof of Age attestation data model, as well as requirements that apply to Age Verification Apps, Attestation Providers, Relying Parties, and Trusted Lists.

4.1 Proof of Age attestation

The data model for the Proof of Age attestation is defined as a profile of the attribute schema specified in ISO/IEC 18013-5 (Mobile Driving Licence [mDL] Application) and ISO/IEC 23220-2 A Proof of Age attestation SHALL comply with this data model

4.1.1 Attribute Set

The attribute set for Proof of Age attestations consists of:

Attribute Identifier	Definition	Presence in Issuance	Presence in verification	Encoding format
age_over_18	This attribute is present in all Proof of Age attestations and indicates whether the user is above 18.	Mandatory	Conditional mandatory (either age_over_18 or one of age_over_NN attributes SHALL be requested)	bool
portrait	A reproduction of the Proof of Age attestation user's portrait. It will be used only for future proximity flows	Optional	Not allowed in remote presentation flows Optional in proximity flows	bstr
age_over_NN	Confirming whether the Proof of Age attestation user is currently over NN years of age. Multiple entries MAY be provided as separate attributes. Supported values of NN: 13, 15, 16, 21, 23, 25, 27, 28, 40, 60, 65, 67. Age statements for other values of NN are not supported by this schema.	Optional	Conditional mandatory (either age_over_18 or one of age_over_NN attributes SHALL be requested)	bool

Note on Age Attribute Scope

While the technical architecture and data model (based on ISO/IEC 18013-5 and ISO/IEC 23220-2) inherently support the age_over_NN attribute schema for arbitrary age thresholds (e.g., age_over_14, age_over_65), this specification explicitly focuses on age_over_18 to address the most common regulatory requirement for age-restricted online services in the EU.

Extending the solution to additional age thresholds would require:

Validation of enrolment methods for the target age group.
Alignment with jurisdictional legal frameworks governing the specific age-based restrictions.

Future iterations of this specification MAY incorporate additional age thresholds as standardised use cases emerge.

4.2 Age Verification App

This section defines requirements that apply to the Age Verification App:

An Age Verification App SHALL implement the protocols specified in Annex A for Proof of Age attestation presentation, SHOULD implement the Zero-Knowledge Proof mechanism specified in Annex A, and MAY implement the protocols specified in Annex A for Proof of Age attestation issuance.
An Age Verification App made available as a mobile application SHOULD be published on the App Stores for Android and iOS operating systems and MAY be published on other App Stores (e.g. Huawei, Samsung).
An Age Verification App MAY include initialisation functionality that is required for the use of the app.
An Age Verification App MAY verify that an Attestation Provider is included on the age verification trust list and is therefore authorised.
An Age Verification App SHALL rely on the device's native cryptographic hardware. capabilities, such as the Secure Enclave on iOS, or the Trusted Execution Environment (TEE) and Strongbox on Android, when they are available.
An Age Verification Instance SHALL authenticate its User in a reliable manner (e.g. using a password, PIN code, biometric verification, pattern) before presenting the Proof of Age attestation. An Age Verification App SHOULD incorporate further authentication factors as needed.
An Age Verification App SHALL use a Proof of Age attestation only once and then remove it from the batch of the issued attestations.
Provider of an Age Verification App compliant with these specifications SHALL inform the Commission about the Age Verification App prior to its publication in the application stores.
The Commission SHALL maintain a list of Age Verification Apps compliant with these specifications on its website.

4.3 Attestation Provider

This section lists the requirements to be met by Attestation Providers:

An Attestation Provider MAY implement the protocols specified in Annex A for Proof of Age attestation issuance.
An Attestation Provider SHALL issue Proof of Age attestations that comply with the data model set in Section 4.1
An Attestation Provider SHALL support batch issuance of Proof of Age attestations
An Attestation Provider SHALL register in a Trusted List.
An Attestation Provider SHALL NOT issue a Proof of Age attestation before verifying the attestation subject's age at the Level of Assurance 'substantial' or 'high'.
An Attestation Provider SHALL NOT issue Proof of Age attestations to any apps not listed on the list of Age Verification Apps maintained by the Commission.
It is RECOMMENDED that an Attestation Provider also acts as the provider of an Age Verification App to which it issues attestations.

4.4 Relying Party

This section lists the requirements to be met by Relying Parties:

A Relying Party SHALL implement the protocols specified in Annex A for Proof of Age attestation presentation.
A Relying Party SHOULD implement the Zero-Knowledge Proof verification mechanism specified in Annex A
A Relying party SHALL accept Proof of Age attestations that comply with the data model set in Section 4.1.
A Relying Party SHALL validate the authenticity and the integrity of a presented Proof of Age attestation.
A Relying Party SHALL validate that the Attestation Provider of a presented Proof of Age attestation is authorised to issue Proof of Age attestations using the Trusted List provided by the European Commission.
A Relying Party SHALL evaluate that a presented Proof of Age attestation includes the requested attribute.

4.5 Trusted List

The European Commission SHALL deploy and manage the Trusted List (ETSI) of Attestation Providers.

5. Age Verification Profile

An age verification profile is defined in Annex A.

6. Features of the White-Label Toolbox

This chapter provides an overview on the features of the Age Verification White Label Solution. The white label solution is a toolbox and offers Age Verification App Providers, Attestation Providers and Relying Parties the opportunity to decide which services and software components they want to use and which functionalities they may want to supplement with commercial offers.

The white label solution will be implemented based on the open source EUDI Wallet Reference implementation libraries.

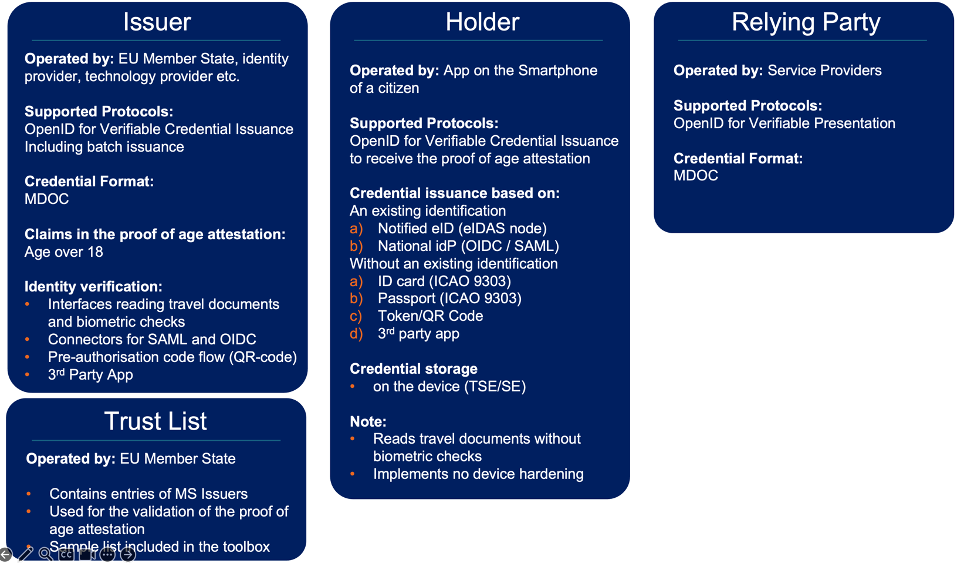

Figure 10: Solution Overview

6.1 High Level Requirements for the White Label Application

The White label App SHALL include key functionality that is highlighted in the following section.

The white label app SHALL include an enrolment and issuing functionality to support the protocols specified in Annex A as the main method utilizing eID based authentication using delegation to an eIDAS node or a trusted identity provider.

Additionally, the white label app SHALL include functionality to scan the ICAO9303 Machine Readable Zone (MRZ) utilizing existing open source library capable of scanning or capturing an image of the data page, enabling extraction of the MRZ, and following utilizing existing open source library to read using NFC and with Basic Access Control ICAO9303 passport and identity data. Following the app SHALL be possible to transmit the data to the age verification issuing server. An interface to obtain travel document results from an external module should replace the aforementioned process, subsequently forwarding data to the issuing server for digital signature confirmation as age verification.

Implementers' additional steps may include:

Service to check the authenticity of an ICAO9303 ID/Passport is not included. The implementor SHALL be responsible for validating a National eID's and ePassport's authenticity against a national IACA and/or Schengen masterlist. An interface to check an issuing authority public certificate will be available in the white label app for this purpose.
A liveness and biometrics matching service is not included. Member States may opt to include these features; however, the issuing service should connect to it.

Furthermore, the white label app SHALL include functionality to allow the use of a QR code and/or token following an out-of-band identification (e.g. over the counter or through an existing app that has already identified the user with a sufficient level of assurance). The QR code and/or token shall be based on the Pre-Authorized Code Flow of OpenID4VCI.

The white label application features also include the use of obfuscation and code protection of the primary library of the app in binary format.

Implementers' additional steps may include:

The app configuration and UI SHALL be further protected using code hardening and runtime application self-protection or similar security measures to protect the total application against malicious attacks.
The app attestation checks are not included in scope (including anti-root measures, etc.), with implementation responsibility resting with the implementers.

The white label app SHALL include localisation and branding capabilities by enhancing the UI per the official languages of at least three Member States.

The white label app does not include app back-end services, which are considered out of scope. All the data is stored in the device, not in cloud.

The terms and conditions and the privacy notice SHALL be included by the Implementers, and the white label app SHALL provide a placeholder to facilitate this.

The white label app includes key features for remote presentation using the protocols specified in Annex A.

The white label app does not include proximity capabilities (ISO 18013-5).

6.2 High Level Requirements for the Age Verification Issuing Service

The age verification issuing service included in the white label solution can be used by Attestation Providers.

The age verification issuing service included in the white label solution SHALL support mDoc and follow the protocols specified in Annex A. The issuing service SHALL support batch issuing for the age over nn attestation.

The claims of the Proof of Age attestation are statically calculated from the enrolment document. Consequently, when an individual reaches the age of nn, they must obtain a new proof of age attestation.

The age verification issuing service SHALL include connectors for eIDAS node with SAML and OpenID Connect integration points for identity providers. Furthermore, an extra module SHALL be included in the issuing service that SHALL receive passport/id data from the white label app to produce the age over nn attestation. The issuing service will also include capabilities for Pre-Authorized Code Flow using QR code/token.

Automatic attestation re-issuing is not in scope for the white label app deployment. A refresh token could theoretically be used to re-issue the Proof of Age attestation. However, since the claims do not contain the date of birth, the user would need to repeat the enrolment process to recalculate the claims. For this reason, refresh tokens are only practical when used in combination with zero-knowledge proofs. Additionally, revocation is not included in the first version of the issuing service.

6.3 High Level Requirements for the Age Verification Service

The age verification issuing service included in the white label solution can be used by Relying Party.

In the toolbox, an age verification service that supports the protocols specified in Annex A using mDoc age over nn attestation SHALL be available. The service SHALL include an mDoc trust manager to verify the MSO validity and authenticity. In order to check the authenticity based on ETSI Trusted lists validation SHALL be provided by the implementers.

6.4 Trusted list

Attestation Providers' trusted lists (ETSI) SHALL be deployed and managed by the Commission.

The white label solution includes a sample trusted list and a validation service. The white label application and the Relying Party will validate the trusted list using the validation service.

6.5 Overview of implementers' actions for deployment of age verification

Depending on the implementers' roles as an AP, RP or white label app provider, one or more of the following actions SHALL be performed:

Integrate the issuing service to the national and/or other trusted eID services including eIDAS nodes.
The Implementers SHALL Secure, Protect, Deploy and Maintain the services from the Toolbox for

a. Issuing Service

b. Verification Service

Finalise app configuration (i.e. translations), compile, secure and publish the Apps from the toolbox.

All configurable features of the white label solution, such as attestation validity time and batch sizes follow the recommendations defined in this document.

Additional operational, security, performance and integration measures will be provided in the next version of this document.

7. Experimental features

7.1 Zero-Knowledge Proofs

A next version of the Technical Specifications for Age Verification Solutions will include as an experimental feature the Zero-Knowledge Proof (ZKP) solution described in the paper "Matteo Frigo and abhi shelat, Anonymous credentials from ECDSA, Cryptology ePrint Archive, Paper 2024/2010, 2024, available at https://eprint.iacr.org/2024/2010". This zkSNARK-based solution was selected through a process where several alternatives were evaluated. This solution requires no changes to the attestation issuance process or to the structure of the Proof of Age credential itself. This backward compatibility allows AVIs to gracefully fall back to traditional protocols in environments where ZKPs are not supported. An individual IETF draft has been submitted, and an open-source implementation has been released here.

A comparison of the considered technologies and the reason for selecting this solution is provided in Annex B

7.1.1 Overview

The considered solution is based on a program expressed in the form of an arithmetic circuit. This circuit receives a secret input, referred to as the witness, which can be for example a Proof of Age attestation, as well as a public statement. The circuit performs a calculation and outputs true if certain conditions hold (e.g., "the Proof of Age attestation includes the age_over_18 attribute"). An AVI can then generate a ZKP which proves that "the AVI knows a witness (i.e., the Proof of Age attestation), which when provided as input to a certain circuit using the provided statement, the circuit outputs true". A circuit for the Age Verification solution would have the following configuration:

Witness: A Proof of Age attestation

Public parameters: The public key of the AP, an attribute attr, a nonce

Output: The circuit outputs true if the following conditions hold:

The Proof of Age attestation includes a signature that can be verified using the public key of the AP
The Proof of Age attestation includes the attribute attr
The AVI can generate a signature of the nonce that can be verified using the public key included in the Proof of attestation
The Proof of Age attestation is within its validity period.
